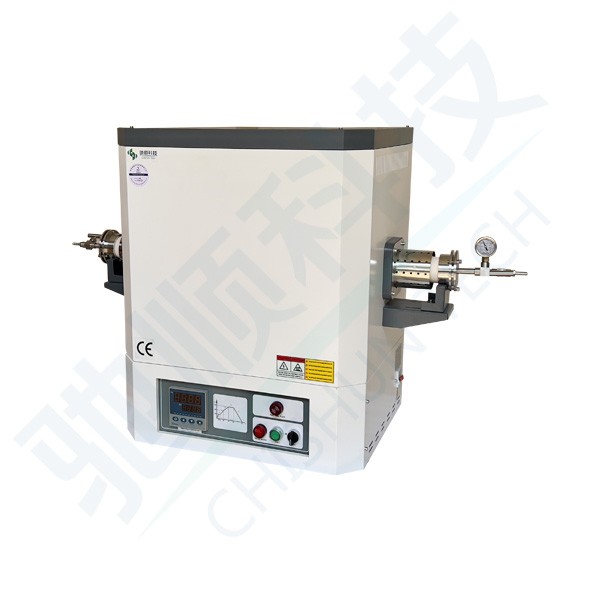

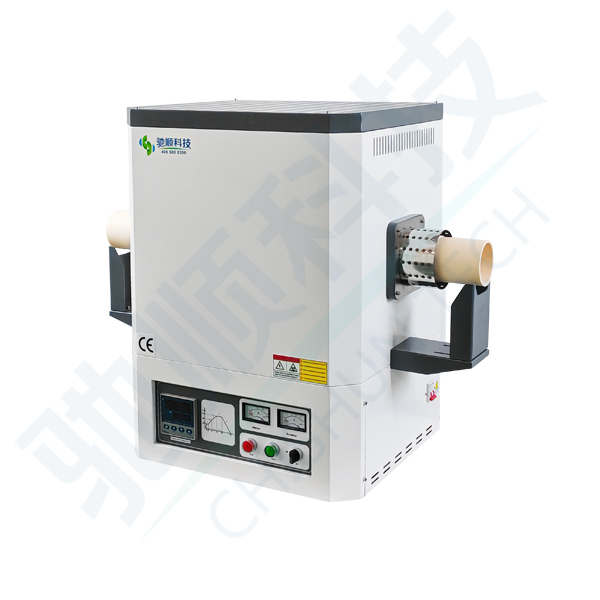

1700℃ single-zone tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.
Furnace shell
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, easy to operate
Refractory material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption
Heating system
The high-quality Mosi2 heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace
Temperature Control Panel
PID and SSR control mode, precise temperature control
International standardized B-type Ni - Cr silicon thermocouple, temperature range 0-1800°C, long service life
Equipped with heating indicator light and over-temperature alarm buzzer
Program Controller
Advanced controllers that meet complex process requirements
Simple and direct operation, flexible programming
Programmable 30 program segments
Over temperature and fault alarm, automatic safety protection
Vacuum Atmosphere Function
With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
High-quality quartz glass working tube, and metal or corundum working tube can also be selected to adapt to different working conditions
dapt to different working conditions
Specifications
|
Model |
TF1700-I |
TF1700-II |
TF1700-III |
TF1700-IV |
|
Tube size |
Φ50x900mm |
Φ60x900mm |
Φ80x900mm |
Φ100x900mm |
|
Max Temperature |
1700℃ |
|||
|
Working temperature |
1600℃ |
|||
|
Heating zone size |
300mm |
|||
|
Power supply |
220V/3KW |
220V/4KW |
220V/5KW |
220V/5KW |
|
Heating element |
MoSi2 |
|||
|
Furnace material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
|||
|
Furnace tube material |
High purity corundum tube |
|||
|
Temperature control accuracy |
±1℃ |
|||
|
Temperature measuring element |
B-type national standard platinum rhodium thermocouple |
|||
|
Temperature control instrument |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
|||
|
Heating rate |
1-15℃/min free adjustment |
|||
|
Furnace structure |
Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation |
|||
|
Sealing performance |
Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump) |
|||
|
atmosphere performance |
There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen. |
|||
|
equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
|||
|
safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
|||
|
shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
|||
|
The standard configuration |
1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual 6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange |
|||
|
Optional accessories |
1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge ((1.0×105-1.0×10-1pa)) 3. Optional float flowmeter (range 60-600ml/min) 4 , optional corundum boat |
|||
|
Competitive Advantage |
1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance |
|||
