Planetary Ball Mill

< >

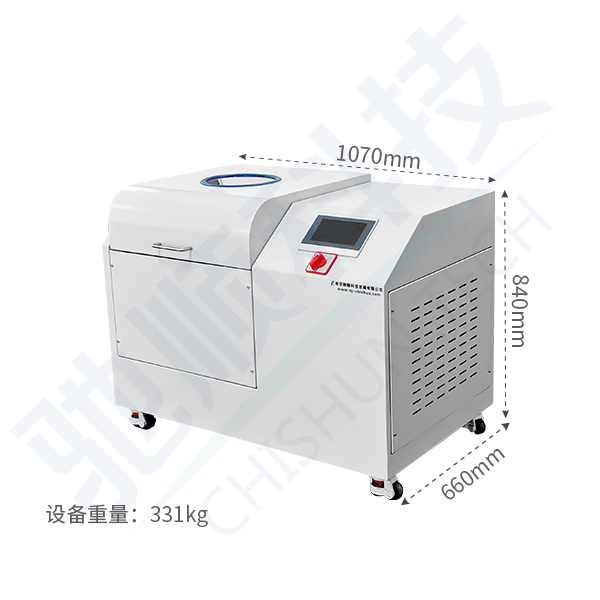

Name： QM-2SP20 Planetary Ball Mill

Model： QM-2SP20

Introduction： QM-2SP20 Planetary Ball Mill is an essential dev ice for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials.

Grinding Equipment Grinding & Milling Equipment

Parameter
Video
Test case
Clients

QM-2SP20 Planetary Ball Mill is an essential dev ice for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials. With small size, full-feature, high efficiency and low noise, this product is an ideal instrument for scientific research institutions, higher institutes and corporate research laboratories to obtain the micro-particle samples (four samples can be obtained in one experiment). If equipped with vacuum ball milling cans, it can grind the samples under vacuum situation. QM series planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.

Working Principle

A turntable is equipped with four milling cans. When the turntable rotates, the milling cans revolve both around the wheel axis and on their own axis, like planetary movement. Balls and materials in the cans collide and rub against each other during the high-speed movement so as to achieve the purpose of crushing, grinding, mixing and dispersing samples. This instrument can grind and mix samples of different sizes or materials during dry and wet conditions. The smallest particle discharged is 0.1um (namely1×10mm-4).

Specifications

Applications	Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc.
Applicable samples	Soft, hard, brittle, fibrous, dry or wet
Max. feed volume	2/3 of the of the grinding jar
Vacuum grinding	optional
Feed size	soil≤10mm other≤3mm
Final fineness	0.1μm
Alternate timing	1-9999min
Rotation	280rpm
Grinding jar	4000ml、5000ml
Vacuum jar	4000ml
Certificate	UL、CE
Power	380V 5.5kw 50~60Hz
Packaging Details	11780103cm 480KG
Data storage	20 sets processes
Data monitoring	Real time monitoring of operational status, supporting fault alarms
Programmable operation	6 sets operation steps supporting edit/delete
Control mode	7" HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)
Jar materials	Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc.
Competitive Advantage	1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance
